Technical Specifications



Build your own sensor app that is optimized for your use case. Process and store data locally on the sensor or stream raw data to a phone. Movesense platform offers an open REST type API and a symmetric client-server architecture that make it highly versatile and practical for new custom sensor solutions.

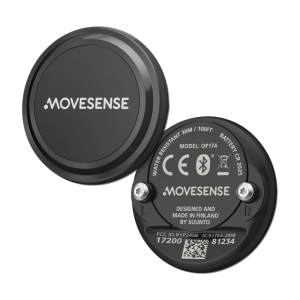

Movesense Sensor

Movesense sensor is the most versatile movement and heart rate sensor in the world: You can develop your own app in the sensor to make it work exactly as you need. Its capable sensing, robust construction, and tiny size make it perfect for measuring movement and physiology in sports, daily life, and much more.

Exceptional for a small battery powered device, the sensor runs Movesense Device API, a REST-type service framework for building applications in the sensor and to provide data to phone apps.

Technical highlights:
— 9-axis motion sensor: acceleration, gyroscope, magnetometer
— Built-in memory for data logging
— Bluetooth® Low Energy radio
— Replaceable battery
— Only 9.4 g (0.33 oz.) with the battery
— Water and shock resistant

Efficient, low-cost developer tools:
— C++ GCC open source toolchain
— Desktop simulator for fast testing and debugging
— Sample code for sensor apps
— Mobile libraries for iOS and Android
— Open source mobile app
— Programming and debugging jig available
— Wireless firmware update with smartphone

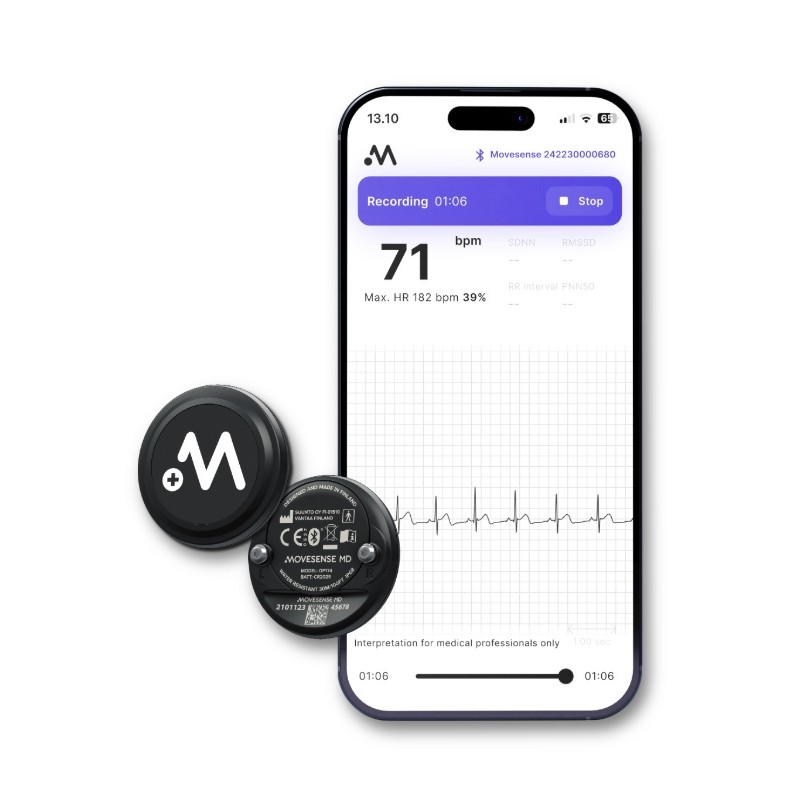

Movesense Medical Sensor

Movesense Medical is a wireless programmable sensor, used as an ECG and motion signal measurement device to provide data for medical applications and host devices for analysis. It is registered as a class IIa Medical Device Accessory, in conformity with the EU medical device directive 93/42/EEC.

The functionality of Movesense Medical can be tailored to the exact needs of each use case. Open APIs enable the development of custom sensor apps and dedicated mobile apps for remote patient monitoring, home healthcare, lifestyle interventions and many other digital health applications.

Technical highlights:
— Clinical grade single channel ECG measurement
— Clinical grade movement measurement: acceleration, gyroscope, magnetometer (IMU9)
— Built-in memory for data logging
— Bluetooth® Low Energy radio
— Replaceable battery
— Class IIa Medical Device Accessory, 93/42/EEC

Efficient, low-cost developer tools:
— C++ GCC open source toolchain
— Desktop simulator for fast testing and debugging
— Sample code for sensor apps
— Mobile libraries for iOS and Android
— Open source mobile app
— Programming and debugging jig available
— Wireless firmware update with smartphone

— Buy a Developer Kit

For technical details and data sheet, please contact us via info@movesense.com

Movesense Accessories

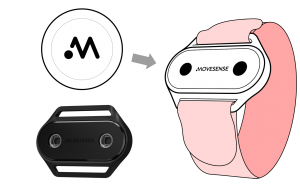

Movesense accessories are optimized for wearing the sensor in the right location and for attaching the sensor to an object that is being measured. A range of accessories cover various use cases for tracking human body, animals, machinery and equipment.

All accessories come in two versions: as a plain mechanical holder with low-profile Movesense snaps and as a smart mount with a unique ID that the sensor can read over 1-wire connection when plugged in.

For heart rate, ECG and motion:
— Heart rate chest strap
— ECG patch electrode
— Integration element for shirts & tops

For movement measurement:
— Wristband
— Clothing clip
— Surface mount

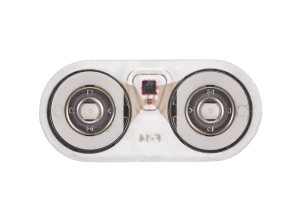

Movesense Connector

Patented low profile snap connection to attach the sensor to apparel and equipment.

There are two models of the connector. The basic model provides the snap connection. The smart model adds a digital ID that the sensor can read to perform a context-specific application.

The smart connector has an embedded chip with an individual ID that can be used for performing context-specific applications.

The patented design is comfortable and unobtrusive, enabling flush integration into gear and apparel.

The connector can be integrated into apparel with standard textile manufacturing tools and methods.

A soft module with electrodes for integrating heart rate sensing into apparel is also available.
